Compressor Electric Motor Testing Panel Two Stations Low Power Consumption

Product Categories

Qingdao AIP Intelligent Instrument Co., Ltd

Contact Now

Add to Cart

Compressor Stator Vacuum Testing Machine, Surge Tester

1. Test item and introduction

Features: original negative pressure technology, vacuum degree can be set freely (0~-90KPa). The winding or coil imperfection can easily be found under the condition of negative pressure.
Test item: AC Hipot, insulation resistance, surge, DC resistance and rotation

2. Technical specification

rotation mode:
rotation	CW, CCW, still

testing range and precision	10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range / resolution	0.5～999s 0.1s/step
temperature compensation function	Yes
temperature probe / range	DS18b20 -10.0℃~+50.0℃
precision	±0.5°C(range: -10℃~+50℃)

output voltage setting range and precision	AC 500～5000V ±(2%×setting value+10V)
breakdown current testing range / precision	0.10～20.00mA ±(2%×display value+0.05 mA)
Hipot current presetting alarm range	Max:0.10～20.00mA；Min:0.00～20.00mA
Hipot current / resolution	±(2% display value+0.05 mA)；0.01 mA
test time range / resolution	0.5～999.9s 0.1s/step

output voltage setting range / precision	DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range / precision	1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)
insulation resistance alarm setting range	Max: 0～500MΩ; Min: 1～100MΩ
test time range / resolution	0.5～999s 0.1s/step

working ambient

comparatively vacuum

output voltage setting range / precision

500～5000V ±(3%×display value+8V)

waveform comparison

area, area difference, corona and phase

waveforms displayed in the testing interface

3. Main features

High performance: compatible to test Hipot, insulation resistance, surge, winding resistance, rotation.
Intelligent: the testing machine can connect to the Ethernet to achieve data interaction and resource share.
Modular design: independent test module design, all the test items are separately
Easy-to-maintain: support intelligent self-diagnose, remote control failure diagnosis and online software upgrading.
High efficiency: all the tests can be done at one-stop with once wire connection
Easy to use: professional software, humanized interface, built-in help documents, standard equipped with touch screen and numeric keyboard.
Multiple languages are available to meet the requirements of customers all around the world.

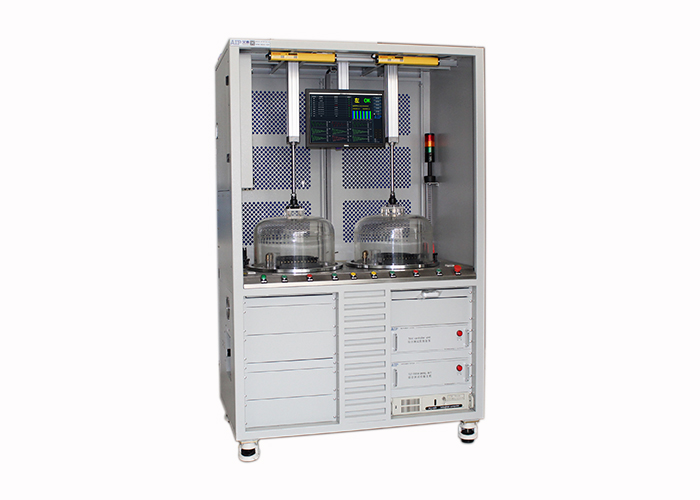

4. Machine picture
