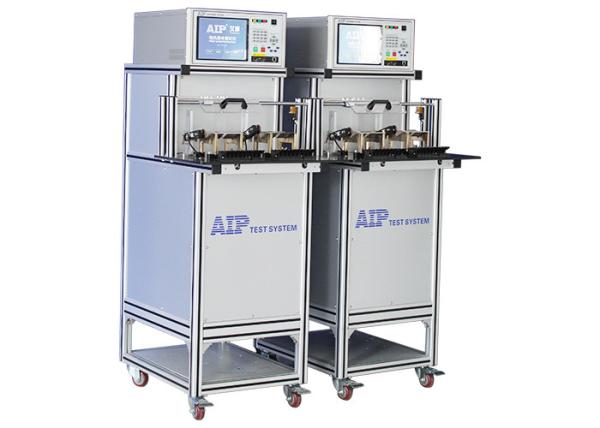

Low Power Resin-Packed Motor Testing Machine, Reliable High Voltage Output
1. Technical specification
| AC Hipot | |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Output voltage setting range and precision | AC 200～3000V ±(2%×setting value+10V) |
| breakdown current testing range/precision | 0.10～20.00mA ±(2%×display value+0.05 mA) |
| Hipot current presetting alarm range | Max:0.10～20.00mA；Min:0.00～20.00mA |
| Surge | |
| output voltage setting range/precision | 500～3000V ±(3%×display value+8V) |
| sampling frequency | 100MHz |
| waveform comparison | area, area difference, corona and phase 3 waveforms displayed in the testing interface |
| Direction of rotation | |
| rotation | CW, CCW, still |
| DC winding resistance test | |
| testing range and precision | 10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set. |
| test time range/resolution | 0.5～999s 0.1s/step |
| temperature compensation function | Yes |
| temperature probe/range | DS18b20 -10.0℃~+50.0℃ |
| precision | ±0.5°C(range: -10℃~+50℃) |
| Insulation resistance | |
| output voltage setting range/precision | DC 500V/1000V ±(2%×setting value+10V) |
| insulation resistance testing range/precision | 1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ) |
| insulation resistance alarm setting range | Max: 0～500MΩ; Min: 1～500MΩ |
| test time range/resolution | 0.5～999s 0.1s/step |
| No-load | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Stall | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Low voltage start | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 words) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
2. Function description
Testing equipment color: aluminum primary
The machine power supply can be customized as the power grip supply.
Linux operating system, professional control software, clear interface
The test item can be selected as required.
Over 1000 motor model can be established and saved in the system.
The parameters range of each type of motor can be entered. The resistance and inductance unbalance degree can be set and tested.
The statistics data can be checked at the test interface, and all the testing data can be exported by USB flash drive.
3. Configuration list:
| No. | Name | Specification | Unit |
| 1 | Master unit | Customized | Set |
| 2 | Test bench | Customized clamps | Set |
| 3 | Test software | Save the test requirements, data and control the test process | Set |
| 4 | Cabinet | Easy to be moved with foot wheels | Set |
|
|
