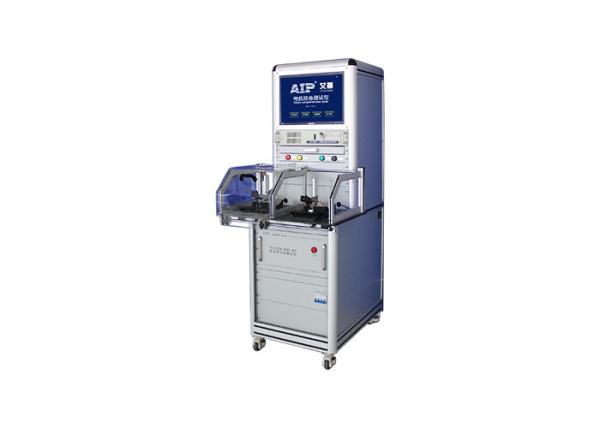

Fan Motor Testing Machine, Hipot/ IR/ Surge/ Resistance/ No-load/ Low voltage start/ Stall
1. Product specification and test item
1.1 Station: two stations
1.2 Clamping mode: test clamps, standard equipped with 8-digit clamps
1.3 Test object: fan motor
1.4 Tests: insulation resistance, winding resistance, rotation, low-voltage start, no-load, stall, Hipot and surge
1.5 Motor picture
2. System introduction
The fan motor testing machine adopts Linux operating system to control the software. It has both the stability of Linux system and friendly interface of Windows system, which can be used to perform the electrical parameters test for the motor of fan, air conditioner and vacuum cleaner, power tools etc.
3. Technical parameters:
3.1 Insulation Resistance:
| output voltage setting range/precision | DC 500V/1000V ±(2%×setting value+10V) |
| insulation resistance testing range/precision | 1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ) |
| insulation resistance alarm setting range | Max: 0～500MΩ; Min: 1～100MΩ |
| test time range/resolution | 0.5～999s 0.1s/step |
3.2 DC Winding resistance:
| testing range and precision | 10.0mΩ～2KΩ ±(0.3%×display value+3 words) temperature compensation can be set. |
| test time range/resolution | 0.5～20s 0.1s/step |
| temperature compensation function | Yes |
| temperature probe/range | DS18b20 -10.0℃~+50.0℃ |
| precision | ±0.5°C(range: -10℃~+50℃) |
3.3 Direction of rotation
| rotation mode: Hall/MAC/inductance | |
| rotation | CW, CCW, still |
3.4 Low voltage start:
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 words) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
3.5 No-load:
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
3.6 Stall
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
3.7 AC Hipot:
| Output voltage setting range and precision | AC 500～3000V ±(2%×setting value+10V) |
| breakdown current testing range/precision | 0.10～20.00mA ±(2%×setting value+0.05 mA) |
| Hipot current presetting alarm range | Max:0.10～20.00mA；Min:0.00～20.00mA |
| Hipot current/resolution | ±(2% display value+0.05 mA)；0.01 mA |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Arc detection | 0~9 level |
3.8 Surge:
| output voltage setting range/precision | 500～3000V ±(3%×setting value+8V) |
| sampling frequency | 100MHz |
| waveform comparison | area, area difference, corona and phase 3 waveforms displayed in the testing interface |
|
|
