| Brand Name : | AIP |
| Model Number : | AIP89XX |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 50 Sets |
| Delivery Time : | 45 working days |

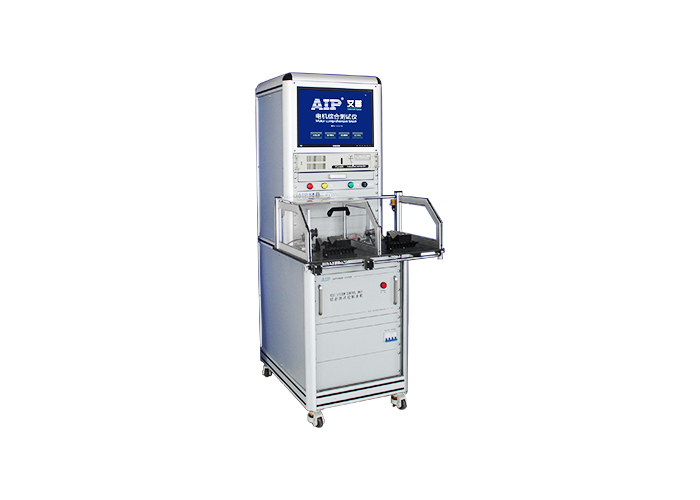

Exhaust Hood Motor Testing Machine, High Precision Motor Test System
1. Motor picture
2. Technical parameters:
| DC winding resistance test | |
| testing range and precision | 10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set. |
| test time range/resolution | 0.5～999s 0.1s/step |
| temperature compensation function | Yes |
| temperature probe/range | DS18b20 -10.0℃~+50.0℃ |
| precision | ±0.5°C(range: -10℃~+50℃) |
| Direction of rotation | |
| rotation | CW, CCW, still |
| Surge | |
| output voltage setting range/precision | 500～3000V ±(3%×display value+8V) |
| sampling frequency | 100MHz |
| waveform comparison | area, area difference, corona and phase 3 waveforms displayed in the testing interface |
| AC Hipot | |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Output voltage setting range and precision | AC 200～3000V ±(2%×setting value+10V) |
| breakdown current testing range/precision | 0.10～20.00mA ±(2%×display value+0.05 mA) |
| Hipot current presetting alarm range | Max:0.10～20.00mA；Min:0.00～20.00mA |
| Insulation resistance | |
| output voltage setting range/precision | DC 500V/1000V ±(2%×setting value+10V) |
| insulation resistance testing range/precision | 1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ) |
| insulation resistance alarm setting range | Max: 0～500MΩ; Min: 1～500MΩ |
| test time range/resolution | 0.5～999s 0.1s/step |
| No-load | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Stall | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Low voltage start | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 words) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
3. Feature description
4. Service
Modular design makes the equipment can be maintained easily. The instrument of the testing system is made of several card modules. All of these function card can be dismantled and changed easily.Support remote control. The service engineers will check the equipment status or failure via remote control.
The testing system has the function of self-diagnose, which could diagnose itself automatically and position the failure module when switch-on the testing system.
|
|
