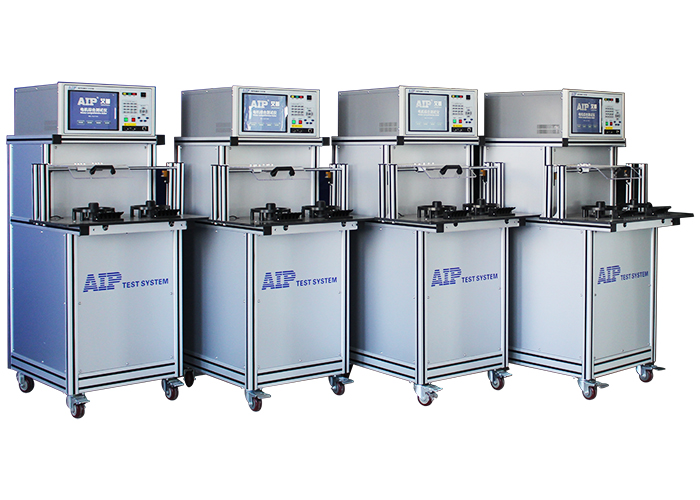

Stator Testing System Of Fan Motor Featured With One-Stop Quick Test And Easy To Maintain
1. Test object: stator of fan motor
2. Test items and specification
2.1 Station: dual station
2.2 Clamping method: test clamps, standard equipped with 8 clamps
2.3 Test items:
AC Hipot, insulation resistance, surge, winding resistance and rotation
3. Product Features:
3.1 Module: independent test module to achieve parallel or serial test
3.2 High efficiency: AC Hipot, insulation resistance, surge, winding resistance, rotation can be tested at
one stop automatically. It takes only 5s to test all these items.
3.3 Intelligent: the system can connect to the internet via Ethernet interface to interact data and share
resources, so as to meet the requirements of IOT.
3.4 Multiple languages: multiple languages can be selected.
3.5 Easy-to-maintain: support self-diagnose, remote control diagnose, and software upgrading. Easy to
dismantle or replace the hardware board card.
4. After-sales service:
4.1 Self-diagnose: the tester diagnose itself automatically after switching on, and position the faulty
module specifically.
4.2 Remote control equipment failure
The after-sales service engineers could diagnose the failure via remote control if the equipment works
abnormally.
4.3 Modular board card design makes the maintenance easier
The modular board card can be sent to the customer site directly once the failure has been diagnosed.
It’s very easy to replace the board card.
5. Technical Specification
| AC Hipot | |
| Output voltage setting range/ precision | AC 200～3000V ±(2%×setting value+10V) |
| breakdown current testing range/precision | 0.10～20.00mA ±(2%×display value+0.05mA) |
| breakdown current presetting alarm range | Max:0.10～20.00mA；Min:0.00～20.00mA |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Insulation resistance | |
| output voltage setting range/precision | DC 500V/1000V ±(2%×setting value+10V) |
| insulation resistance testing range/precision | 1～500MΩ ≤100MΩ:±(3%×display value+0.5MΩ)； >100MΩ:±(5%×display value+5MΩ) |
| insulation resistance alarm setting range | Max:0～500MΩ；Min:1～500MΩ |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Surge | |
| output voltage setting range/precision | 500～3000V ±(3%×display value+8V) |
| sampling frequency | 100MHz |
| Surge graph comparison | Area, area difference, corona, phase. Three surge graphs will be displayed on the test interface |
| DC winding resistance | |
| measuring range and precision | 10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set |
| test time range/resolution | 0.5～999s 0.1s/step |
| temperature compensation | Yes |
| temperature probe/measuring range | DS18b20 -10.0℃～+50.0℃ |
| test precision | ±0.5℃(range:-10℃～+50℃) |
| Direction of rotation | |
| Rotation | CW, CCW and still |
|
|
