    Air Conditioner Motor Stator Test Equipment

    Ask Lasest Price
    Brand Name : AIP
    Model Number : AIP89**
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

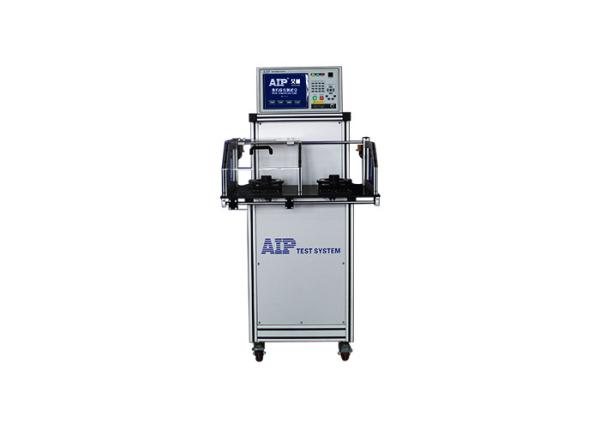

    Air Conditioner Motor Stator Test Equipment


    Automatic Stator Testing Machine Of Automotive Air Conditioner Motor


    1. Product advantages:

    • Modular design: independent test module, test items can be selected as required. Set the single station or dual station test mode as required to achieve parallel or serial test.
    • High efficiency: all tests can be performed automatically after connecting the leads with the tester. It takes 5s to test Hipot, insulation resistance, surge, winding, inductance and rotation.
    • Easy-to-maintain: each function module is designed as separate board, which can be maintained easily. Support self-diagnose, remote control and online software upgrading function.

    2. Technical parameters


    DC winding resistance
    measuring range and precision10.0mΩ~20KΩ ±(0.3%×display value+3 words) temperature compensation can be set
    test time range/resolution

    0.5~999s 0.1s/step

    temperature compensationYes
    temperature probe/measuring rangeDS18b20 -10.0℃~+50.0℃
    precision±0.5°C(range: -10℃~+50℃)

    Surge

    output voltage setting range/precision500~3000V ±(3%×display value+8V)
    sampling frequency100MHz
    waveform comparison

    area, area difference, corona, phase

    three waveforms will be displayed on the testing interface

    breakdown current testing range/precision0.10~20.00mA ±(2%×display value+0.05mA)

    Hipot

    output voltage setting range/precisionAC 200~3000V ±(1.5%×setting value+10V)
    breakdown current presetting alarm rangeMax: 0.10~20.00mA; Min: 0.00~20.00mA
    test time range/resolution0.5~999.9s 0.1s/step

    Insulation resistance

    output voltage setting range/precisionDC 500V/1000V ±(1.5%×setting value+10V)
    insulation resistance testing range/precision

    1~500MΩ

    ≤100MΩ:±(3%×display value+0.5MΩ);

    >100 MΩ:±(5%×display value+5MΩ)

    insulation resistance alarm setting rangeMax: 0~500MΩ; Min: 1~500MΩ
    test time range/resolution0.5~999.9s 0.1s/step

    Rotation

    Direction of rotationCW/CCW/still

    3. Test method and functionTest object:

    3.1 Test object: stator of automotive air conditioner motor

    3.2 Wire connection: pin connector

    3.3 Station: dual station

    3.4 Test items:

    Winding resistance: winding to winding

    Surge test: winding to winding

    AC Hipot: winding to iron core

    Insulation resistance: winding to iron core

    Direction of rotation: CW, CCW, still
