Brushless motor FCT testing machine/ BLDC motor testing

1. Machine description

This series of products, applied in FCT test of BLDC motor in the product of automobile, air conditioner, fan, blower, power tool etc, are able to test electrical performance of FCT accurately. The testing system is composed of test stand, IPC, test unit, system software and functional modules. Start the system, all set tests will be performed and displayed test data, which could be uploaded to MES. Display OK/NG test result with light and volume remind.

2. Machine feature

• Easy-to-maintain: support self-inspection, remote control inspection, and software upgrading. Easy to dismantle or replace the hardware board card.
• Integrated design: integrated innovation design simplifies the operation station
• Quick fix: simple and high-efficient fix solutions make the operation easier, meet the production line efficiency requirements.
• Software feature: user permission management, large storage space, able to save test programs up to 1000.
• Information connect: support to connect MES (manufacturing execution system)
• Easy to operate: professional test software, humanized interface, built in help document, standard equipped with touch screen and numeric keyboard.
• Multiple ports: the equipment comes with USB, LAN (RS232, RS485, Can interfaces, support TCP/IP network protocol, PLC emulation technic.

​

3. Test item

Load performance, Hall, phase loss

4. Technical parameters

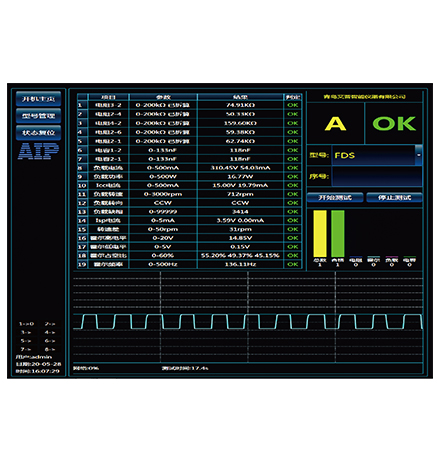

5. Software reference picture
